Touchscreen control
35EM is the touchscreen configuration. Confirm the requested control interface and electrical standard when you send your inquiry.
35EM / 35 L / TOUCHSCREEN
Dry storage, from the inside out.
One compact cabinet. A touchscreen for setting humidity. An electronic dehumidifying module that needs no replacement desiccant packs. Follow the details below to see how the 35EM is built, used and specified.
Compact storage for a small camera kit.
Set and monitor humidity on the front panel.
Electronic dehumidification without desiccant sachets.
01 / WHY HUMIDITY MATTERS
Protect the equipment, not just the cabinet
Changing room humidity can expose cameras, lenses and other sensitive items to moisture. Controlled storage can reduce that exposure; it cannot repair existing damage or guarantee that mold will never occur.
Optical glass and coatings merit careful storage when room conditions change.
Reducing prolonged moisture exposure may help protect susceptible components.
Choose a target RH appropriate to each item; one setting does not suit everything.
THE ELECTRONIC CORE
Real hardware behind the humidity control
Set a target relative humidity using the electronic front panel. The control system pauses dehumidification when the set level is reached and resumes as needed when humidity rises. This helps maintain a controlled storage environment for moisture-sensitive equipment.

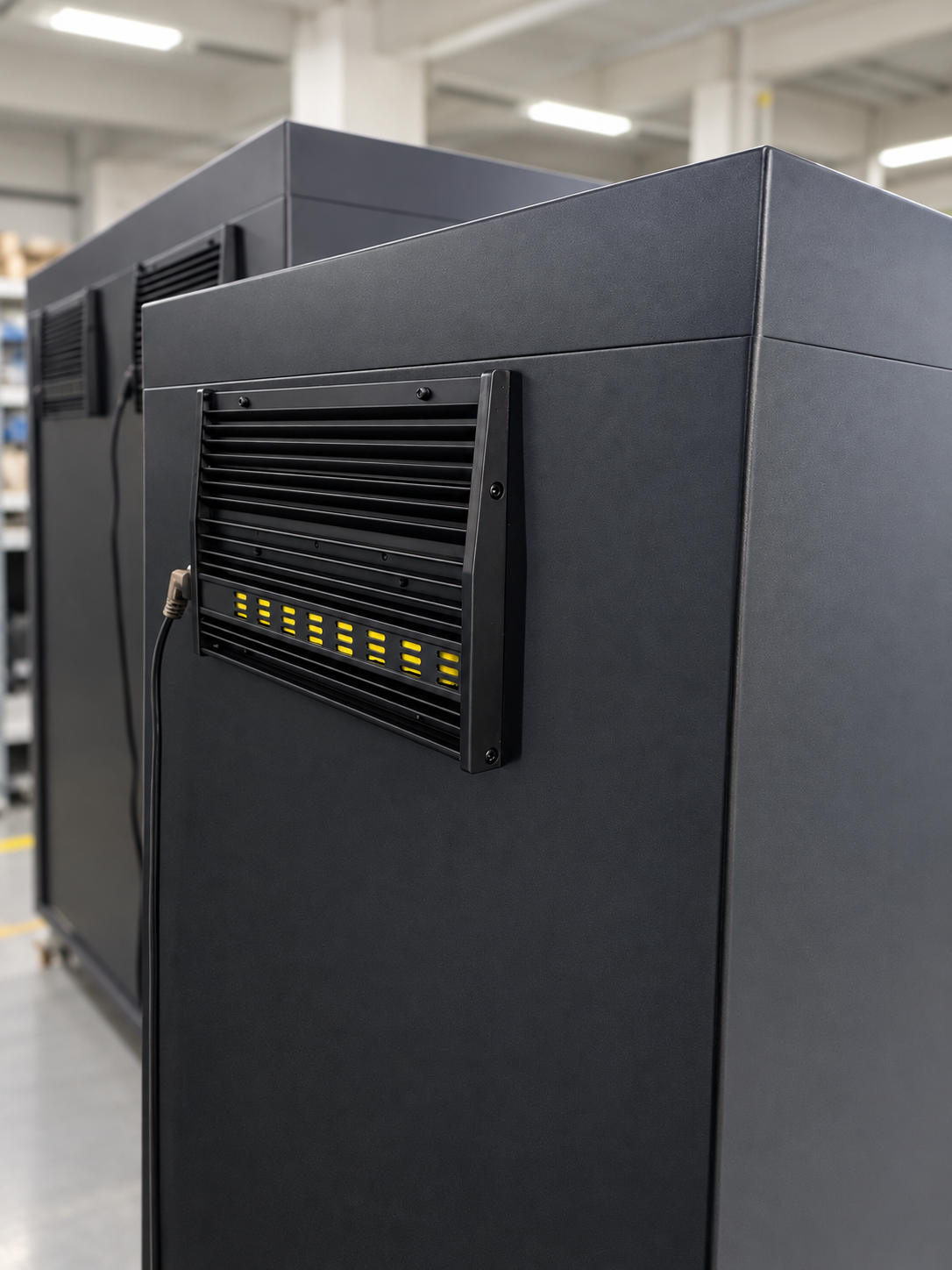

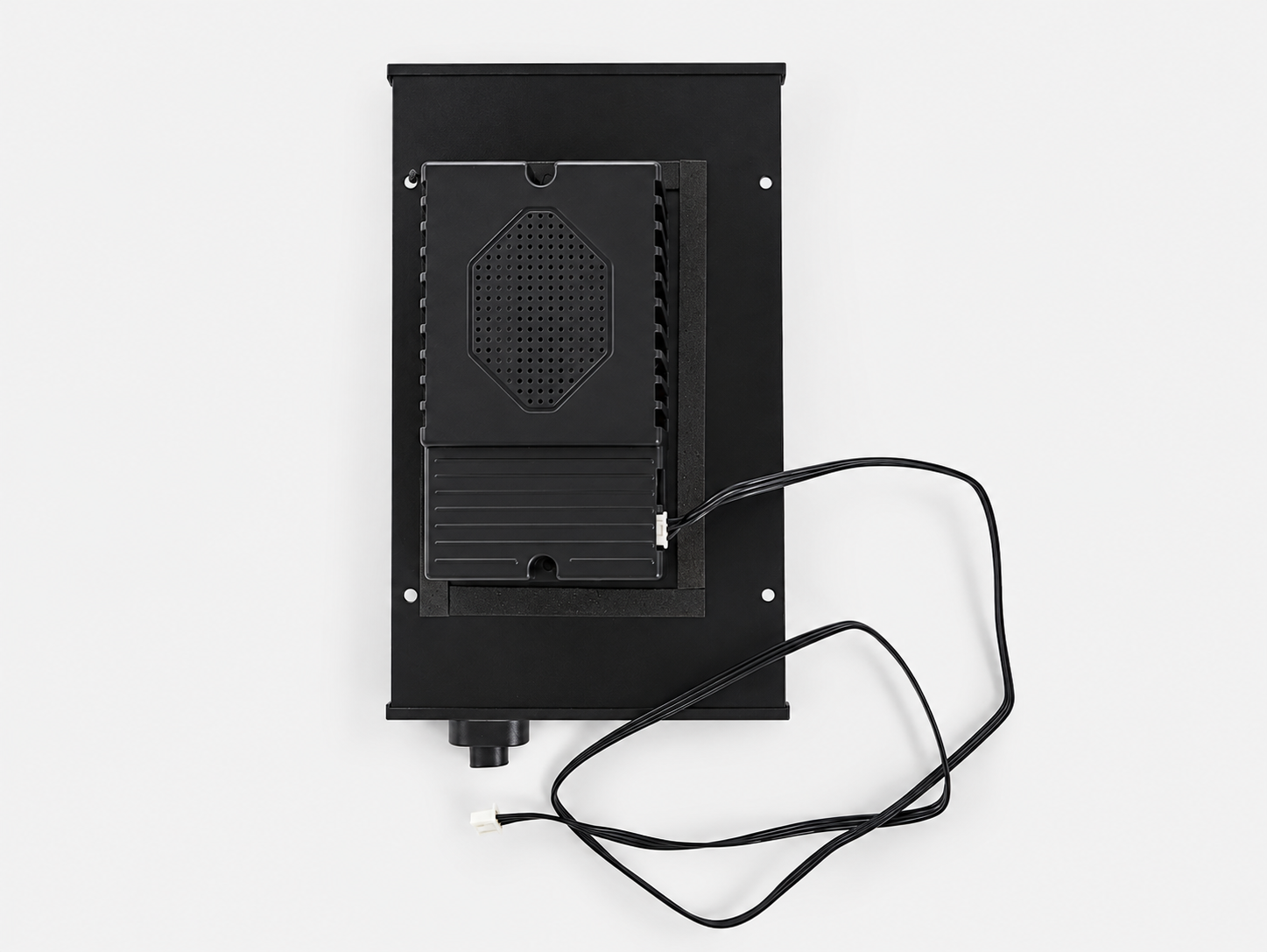

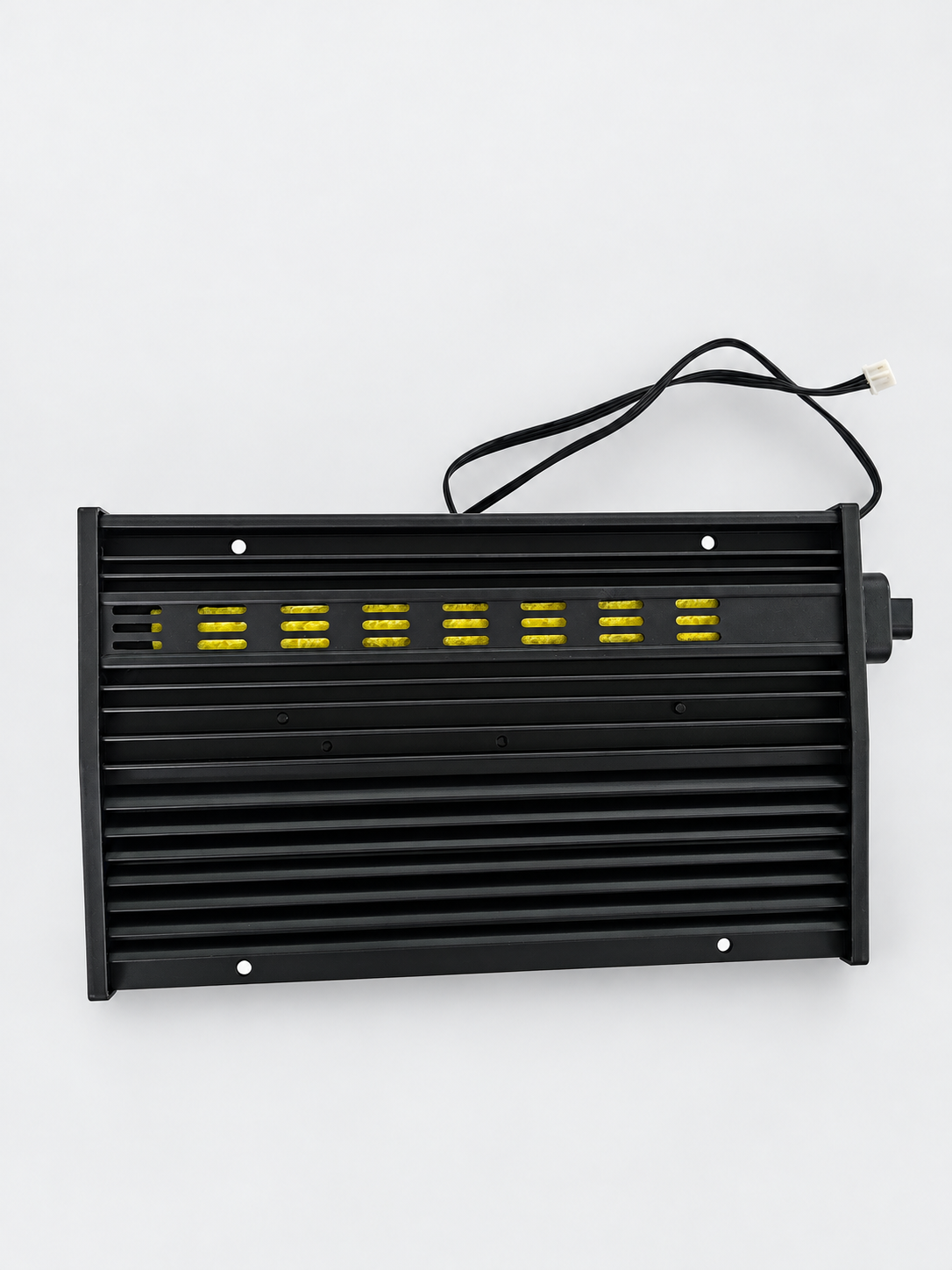

The 35EM uses the factory's ultra-thin electronic dehumidifying core without replaceable desiccant packs. It is designed for quiet, drip-free operation. The display connects to the cabinet control system and does not need a separate display battery.
Control sequence
- Select target humidity
- Monitor the RH readout
- Cabinet regulates automatically
03 / TOUCHSCREEN PANEL
Two readings, one control panel
The front panel displays relative humidity and temperature, with touch controls for settings and interior light. This is the touchscreen version only. Control-panel appearance can vary by production configuration; confirm the supplied panel before placing a bulk order.
Use the RH reading to check current cabinet conditions.
Read the cabinet temperature separately from the humidity value.
Adjust the target RH on the supplied panel; confirm exact button layout before ordering.

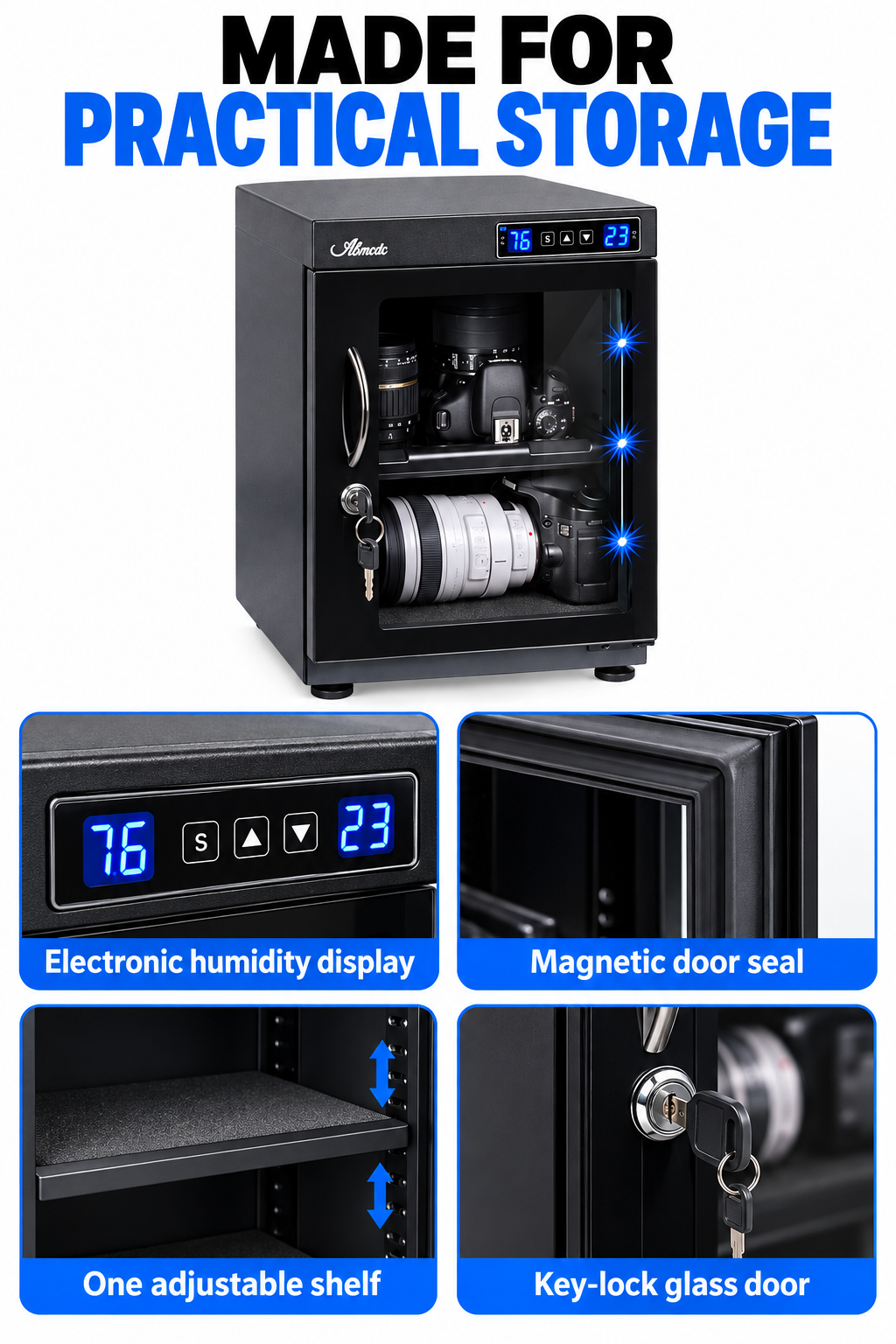

04 / CABINET DETAILS
Designed around daily access
The single-door 35EM combines a glass viewing door, magnetic seal, key lock and one height-adjustable shelf. These details matter in daily use: see stored equipment without opening the door, organize different item heights and keep the door securely closed.
QUIET & EFFICIENT
Low-noise dry storage without refills
4 Wrated input for the catalogued 35EM configuration
The 35EM is designed for indoor storage where intrusive operating noise is undesirable. If your project requires a measured decibel limit, ask the factory to confirm the tested value for your configuration.
No replaceable chemical desiccant packs are needed. Actual energy use varies with setting, door opening and surroundings.
35EM essentials
- 4 W rated power
- No replacement desiccant packs
- Touchscreen control
- Glass viewing door
06 / MATERIALS & FINISH
Glass, steel and a practical interior
Look at the cabinet contents while limiting unnecessary door openings.
The cabinet uses a protective coated finish; confirm finish details for your order.
One shelf can be repositioned to fit different equipment heights.
These visible details make the cabinet practical for daily storage and inspection. Ask the factory for material and finish documentation if your purchasing specification requires it.
07 / STORAGE USES
A compact space for moisture-sensitive items
Keep a small photography kit in a controlled cabinet instead of leaving it exposed to changing room humidity.
Use the adjustable shelf for devices of different heights. Check internal measurements before ordering.
Consider selected watches, documents and small collectibles only when their recommended storage RH matches the cabinet setting.
08 / DAILY USE
From installation to regular checks
Measure your largest item and allow clearance around the door and power connection.
Use the supplied touchscreen to choose a suitable humidity setting for your items.
Keep the door closed in normal use and check the RH reading after opening it.
Storage advice depends on the equipment maker and local conditions; this cabinet does not replace item-specific care guidance.

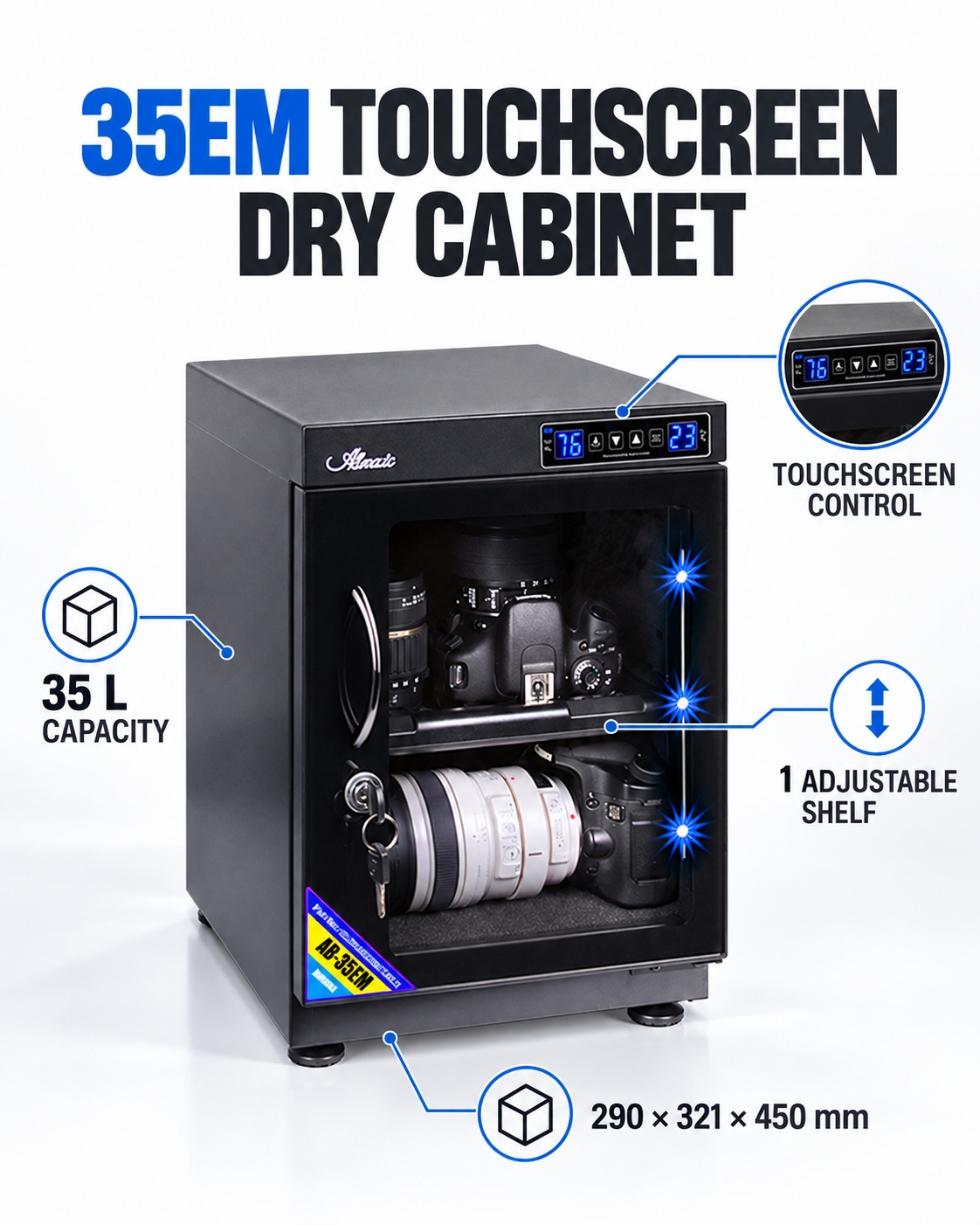

MODEL-SPECIFIC DIMENSIONS
Check equipment fit, not just the litre rating
35EM · 35 L
External: 290 × 321 × 450 mm (W × D × H)
Internal: 286 × 290 × 385 mm (W × D × H)
Shelf: one adjustable shelf
Rated power: 4 W
Allow room for the door and power connection at your installation location.
BEFORE A FACTORY ORDER
Tell us what you need to store
Confirm panel version, plug and voltage requirements.
Share the dimensions of your largest camera, lens case or device.
Tell us quantity, destination, branding and packaging needs for a quotation.
Shown equipment is illustrative and is not included. Final specifications and accessories are confirmed in the sales quotation.
